Product Introduction
The JW-A10-1-1 Mini Combination Weigher is a compact multi-head weighing scale designed for fast, stable, and accurate dosing of small granular products. With a 500 ml hopper capacity and a throughput up to 65 packets per minute, it supports efficient packaging lines where precision, easy operation, and quick cleaning are required. A 7-inch touch screen interface and multi-language operation make it suitable for global production environments.
Product Advantages
High Accuracy Weighing Performance
Equipped with a high-precision digital load cell system, the machine delivers reliable weighing within a wide accuracy window to match different product behaviors and target weights. Enhanced A/D conversion and anti-interference design help maintain consistent readings even under continuous high-speed operation.
Stable Mechanical Structure for Continuous Production
An optimized frame design with improved jointing and one-piece structural concepts increases rigidity and reduces vibration impact. The stepper-motor drive layout shortens the distance between product flow and sensing components, reducing weight fluctuation during hopper opening and closing and improving final combination stability.
Optimized Feeding and Combination Efficiency
Independently adjustable vibrator control supports balanced feeding across channels, improving combination probability and reducing cycle variation. A specially designed V-shaped feeding pan helps manage product fluidity, increasing dosing consistency for free-flowing granules and small particles.
User-Friendly Operation and Global Readiness
The integrated help menu, intuitive touch interface, and multi-language options enable rapid setup and easy operator training. Up to 100 parameter sets can be stored for quick product changeovers, supporting multiple SKUs and frequent production switching.
Hygienic, Easy-Clean, and Production-Safe Design
IP65 dustproof and waterproof protection with a sealed cover structure supports washdown-friendly maintenance and reduces contamination risk. The fully enclosed design is engineered for fast cleaning and dependable operation in demanding factory conditions.
Compact Footprint and Efficient Discharge
With a 0.5 L hopper design, the overall machine volume is reduced for space-sensitive lines. A lowered discharge design helps reduce falling height, improving product handling and supporting smoother transfer to downstream packaging equipment.
Technical Specifications
| Model | JW-A10-1-1 Mini Combination Weigher |
| Weighing Range | 2–150 g |
| Weighing Accuracy | ±0.1–1.0 g |
| Maximum Speed | Up to 65 packets/minute |
| Hopper Capacity | 500 ml |
| Control Panel | 7-inch Touch Screen |
| Drive System | Stepper Motor |
| Power Specification | 220 V / 900 W / 50–60 Hz / 8 A |
| Packaging Size (L×W×H) | 1130 × 910 × 910 mm |
| Machine Weight | 180 kg |
Application Fields

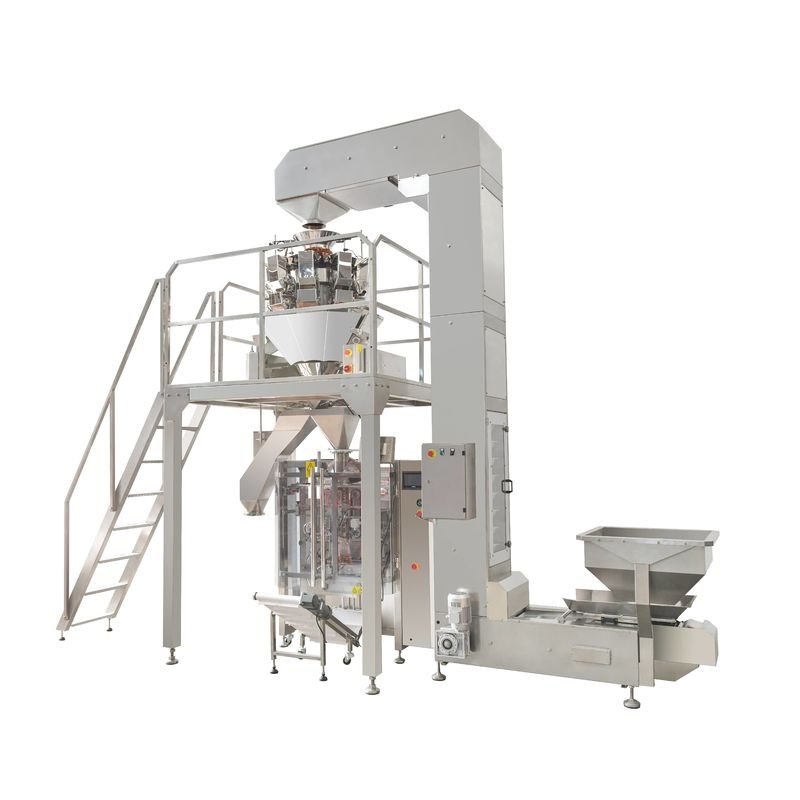

This mini combination weigher is suitable for accurate weighing and dosing of small granular products, including candy, seeds, monosodium glutamate (MSG), coffee granules/beans, chocolate beans, and similar free-flowing materials. It is commonly integrated into vertical packaging systems and automated bagging lines where high speed, repeatable accuracy, and compact installation are required.
