Product Introduction

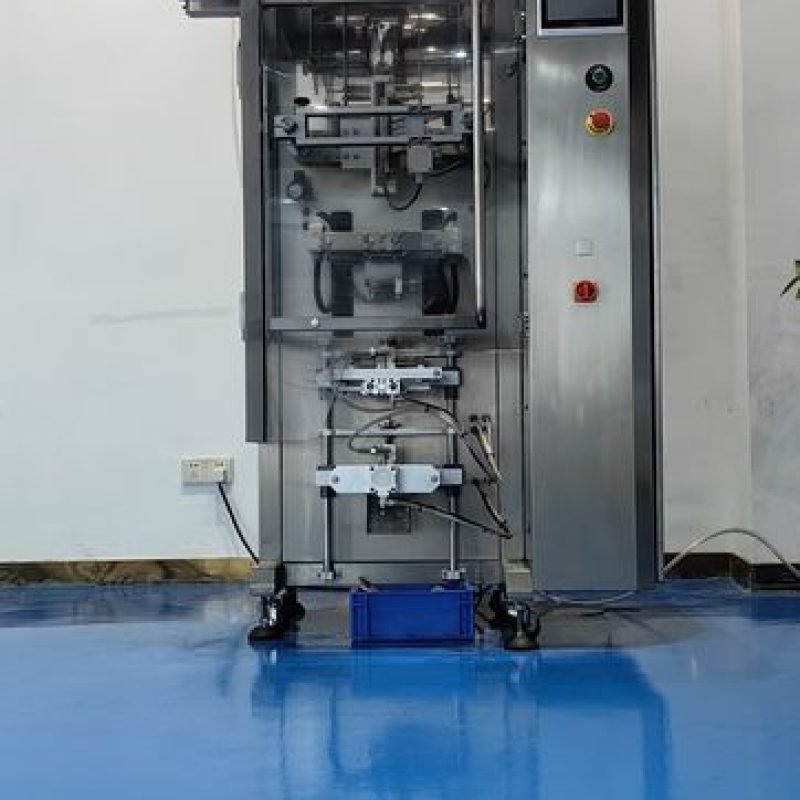

The DS180A-P-G-L Stripe Back Seal Packaging Machine is a fully automatic VFFS solution designed to package powders, granules/particles, and liquids on one shared platform. With an electric + pneumatic drive architecture and servo-controlled sealing and bag pulling, it delivers stable forming, accurate dosing, and clean back-seal pouch output at 30–50 bags per minute. The machine is built for flexible production: switch between powder screw metering, push-cup particle dosing, or optional liquid pump/piston systems according to material characteristics and target fill range. CE and CE/ISO9001 compliance, a 304 stainless-steel main structure, and an operator-friendly Siemens control system make it a reliable choice for factories that need multi-product capability without sacrificing speed, consistency, or sealing quality.
Product Advantages
One Platform for Powder, Granules, and Liquids
A single host machine supports three product types, reducing equipment duplication and floor-space cost. The platform can be configured with a servo-driven auger (powder), a pneumatic push-cup dosing unit (granules), or optional liquid metering devices (low-viscosity pumps or medium/high-viscosity ceramic piston rotary valve pump). This modular approach supports faster product launches and easier line planning.
Servo-Controlled Sealing and Bag Pulling for Consistent Pack Quality
Servo motor heat sealing and servo bag pulling provide repeatable pouch length control and stable sealing pressure, improving appearance and reducing rejects. Back-seal strip pouch output is optimized with defined sealing widths and patterned horizontal sealing, delivering a professional finish suitable for retail or industrial channels.
Accurate Dosing Across Small Fill Ranges
For powders, the CCL1-N servo auger system covers 0.2–30 g without changing screw attachments, minimizing changeover time while keeping dosing stable. For granules, the TB-30 push-cup device provides adjustable small-dose control with accuracy dependent on material flow characteristics. Liquid options support 0–100 ml for dilute or low-viscosity liquids and 0–30 ml for medium to high viscosity liquids with pneumatic precision control.
Industrial-Grade Controls and Components
The standard control suite combines a Siemens 7-inch color touch screen and Siemens PLC with bilingual operation (Chinese/English), error prompts, and self-diagnostics to simplify operation and maintenance. Temperature stability is managed by Yudian PID control (2 vertical + 2 horizontal sealing channels). SUNX101 photoelectric tracking supports stable film registration, while key electrical parts from Schneider or Omron enhance long-term reliability. Taiwan AIRTAC pneumatic components support smooth actuation and consistent dosing performance.
Operator-Friendly Setup and Safer Operation
Integrated manual correction helps align film and improve forming stability. A manual expansion-shaft film mounting device speeds film replacement and reduces setup errors. A Panasonic safety door switch supports safer operation during routine checks and adjustments.
Hygienic, Durable Construction
Exposed machine surfaces are primarily 304 stainless steel or aluminum alloy (excluding parts unsuitable for moving mechanisms), supporting corrosion resistance and easier cleaning. This structure is suitable for daily production environments where stability, sanitation, and durability are required.
Technical Specifications
| Model | DS180A-P-G-L |
| Machine Type | Automatic stripe back-seal packaging machine (VFFS) |
| Certification | CE; CE/ISO9001 |
| Drive Type | Electric + Pneumatic |
| Applicable Products | Powder, particles/granules, liquids |
| Packaging Speed | 30–50 bags/min (depends on bag length and material condition) |
| Fill Range (typical) | 0.2–30 g/bag (powder/granules); liquid options up to 0–100 ml (depending on metering device) |
| Measurement Accuracy | ±1% to ±5% (material-dependent; per standard) |
| Bag Style | Stripe back seal; vertical seal: twisted edge sealing |
| Bag Making Capacity | W ≤ 80 mm × L ≤ 150 mm |
| Sample Bag Size (reference) | W 25 mm × L 122 mm (final size per confirmed sample schematic) |
| Packaging Film | Composite packaging material; max film width ≤ 180 mm |
| Packaging Film Width (reference) | 60 mm |
| Horizontal Sealing Form | Diagonal straight seal |
| Back Sealing Width | 5 mm (per confirmed sample schematic) |
| Horizontal Sealing Width | 9 mm (per confirmed sample schematic) |
| Cutting Method | Rounded-corner cutting |
| Easy-Tear Notch | Configurable per sample bag requirement |
| Photoelectric Tracking | SUNX101 |
| Control System | Siemens 7″ color HMI + Siemens PLC (CN/EN), alarms + self-diagnosis |
| Temperature Control | Yudian PID (2 vertical sealing + 2 horizontal sealing) |
| Servo System | Siemens servo for bag pulling; servo heat sealing |
| Electrical Components | Schneider or Omron |
| Pneumatic Components | Taiwan AIRTAC |
| Safety | Panasonic safety door switch |
| Power Supply | AC 220 V / 50 Hz (customizable) |
| Installed Power (host reference) | 2.0 kW (host configuration); total power may vary by options |
| Gas Consumption | 6 kg (air source), 0.4 m³/min (host reference) |
| Machine Material | 304 stainless steel main/exposed parts; aluminum alloy where applicable |
| Overall Dimensions (L×W×H) | 2800 × 2800 × 1800 mm |
| Packaging Types Supported | Bags, pouch, film/foil, case (system-dependent) |
| Packaging Materials Supported | Plastic, paper, laminated film, composite film (and compatible materials) |
Powder Metering Option: CCL1-N Servo Auger (Hollow Screw, Semi-Open Hopper)
| Measuring Range | 0.2–30 g (no screw change required) |
| Filling Accuracy | Within national standard (material-dependent) |
| Filling Speed | ≤ 60 kg/min |
| Motor | Siemens 750 W |
| Power Supply | AC 220 V / 50 Hz, 900 W |
| Hopper | 12 L, semi-open |
| Lifting Method | Hand-cranked screw lift |
| Process Feature | Hollow screw helps control air content in the bag; nitrogen flushing is possible with optional accessories (not included) |
| Material | 304 stainless steel appearance parts |
| Included | 1 set of measuring screws |
Granule Metering Option: TB-30 Pneumatic Push-Cup Doser
| Measuring Range | 0.2–30 g (may require changing cup attachments for different weights) |
| Filling Accuracy | ≤ ±1% to ±5% (material-dependent) |
| Filling Speed | ≤ 60 kg/min |
| Air Consumption | 6 kg, 0.3 m³/min |
| Hopper | 8 L, integrated |
| Material | 304 stainless steel appearance parts |
| Included | 1 set of measuring cups |
Liquid Metering Options (Select by Viscosity)
| LF100A Magnetic Pump (Single Head) | For pure dilute liquids (no particles); 0–100 ml; accuracy +1% to +3%; max 4.2 L/min; DC speed motor; stainless rack; set speed & volume on main panel |
| LF100B Gear Pump (Single Head, 25 L Bucket) | For low-viscosity liquids (no particles); 0–100 ml; accuracy +1%; max 4.2 L/min; servo motor drive; stainless rack; set speed & volume on main panel |
| P3-R26 Ceramic Piston Rotary Valve Pump | For medium to high viscosity liquids; 0–30 ml; ±1% accuracy; ≤50 cycles/min; pneumatic drive; includes constant-temperature 25 L material bucket (hot-water jacket) and anti-drip discharge piping |
Application Fields
This machine is suitable for manufacturers needing flexible small-bag packaging across multiple product categories, including daily chemical powders and granules, seasoning and food ingredients (where appropriate film and hygiene practices are used), pharmaceutical or nutraceutical powders requiring stable dosing, and liquid products such as dilute solutions, low-viscosity fluids, or medium/high-viscosity formulations when equipped with the corresponding liquid metering option. Typical use cases include sample packs, single-dose sachets, stick-style back-seal pouches, and OEM/contract packaging lines that must switch quickly between SKUs while maintaining consistent sealing quality and production efficiency.
