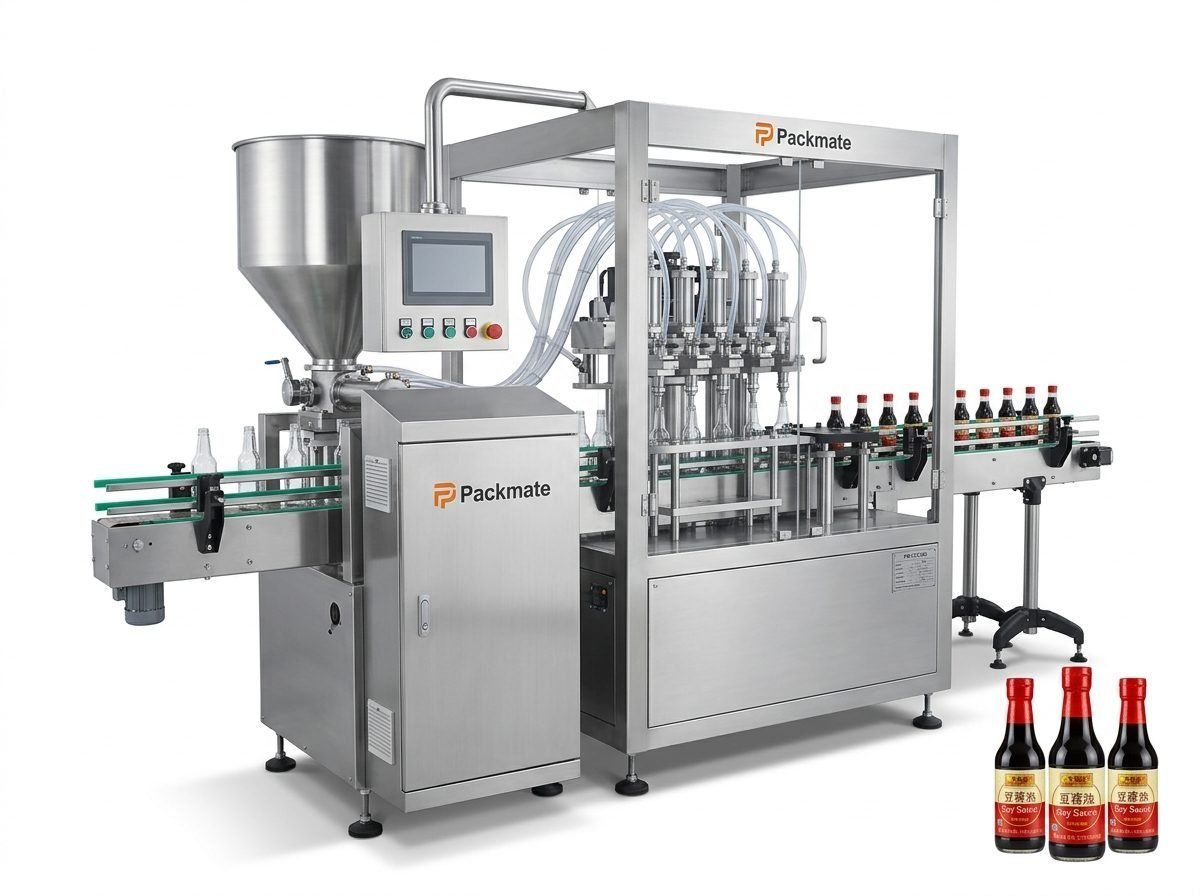

High-Speed Automated Bottle Filling and Sealing System for Viscous Liquids

High-Speed Automated Bottle Filling and Sealing System for Viscous Liquids

Packmate (GuangDong) Co., Ltd., a leading Chinese manufacturer with over 30 years of expertise in intelligent packaging solutions, introduces its state-of-the-art High-Speed Automated Bottle Filling and Sealing System. Engineered specifically for the demanding requirements of viscous liquid packaging, this system represents the pinnacle of efficiency, precision, and hygiene for modern production lines. It seamlessly integrates precision filling, cap sorting, and torque-controlled sealing into one continuous, automated process. This integration dramatically enhances production throughput while guaranteeing consistent product quality, leak-proof integrity, and strict adherence to food-grade sanitation standards. Built with robust durability and operational simplicity in mind, it is designed to meet the rigorous 24/7 demands of food, condiment, and pharmaceutical facilities, providing a reliable and cost-effective cornerstone for packaging products such as soy sauce, edible oils, sauces, syrups, and pharmaceutical suspensions.

Product Features

The High-Speed Automated Bottle Filling and Sealing System incorporates advanced engineering to deliver unparalleled performance, flexibility, and ease of operation.

• High-Precision Servo Filling: Utilizes an advanced servo-driven piston filling mechanism to achieve exceptional accuracy within ±0.5%. This technology ensures exact volume control for every bottle, eliminating product giveaway and maintaining consistency even with challenging, variable viscosities.
• Fully Automated Capping & Sealing: Features an integrated automatic cap sorter, feeder, and torque-controlled sealing station. The system reliably handles a wide variety of cap types including screw caps, flip-top caps, and press-on lids, applying each with consistent, secure, and leak-proof force.
• Intelligent PLC Control System: Centered on a user-friendly PLC with a touchscreen HMI (Human-Machine Interface) for intuitive operation. It allows for easy parameter setting, multiple recipe storage, and real-time monitoring of production speed, output counts, and comprehensive system diagnostics for proactive maintenance.
• Robust & Hygienic Design: Constructed with high-grade stainless steel (SS304/316) for all product contact parts and the main framework. The design prioritizes smooth, crevice-free surfaces and offers CIP (Clean-in-Place) capabilities, enabling effortless cleaning and sterilization to comply with stringent global food safety and pharmaceutical standards (e.g., GMP, FDA).
• Quick-Change Flexibility: Equipped with adjustable bottle guiding rails and quick-release change parts. This design allows for rapid changeovers between different bottle shapes and sizes, significantly minimizing downtime and maximizing production line flexibility.
• Seamless Production Line Integration: Engineered as a modular unit for easy synchronization with upstream equipment like bottle unscramblers and rinsers, and downstream systems such as labelers and case packers. This enables the creation of a complete, efficient, and turnkey packaging line solution.

Technical Specifications

*Speed may vary based on bottle size, liquid viscosity, and cap type.

Product Application Fields

This automated system is ideally suited for a wide range of industries that require high-speed, precise, and hygienic packaging of viscous liquid products. Its robust and sanitary construction makes it a perfect fit for:

• Food & Condiments: Automated bottling of soy sauce, vinegar, cooking oils, sesame oil, liquid sweeteners, sauces (e.g., ketchup, mayonnaise, chili), dressings, and syrups.
• Beverage Industry: Packaging of dense fruit nectar, yogurt drinks, liquid dairy creamers, and nutritional beverage supplements.
• Personal Care & Cosmetics: Filling and sealing of lotions, creams, shower gels, shampoos, conditioners, and liquid soaps.
• Pharmaceutical & Healthcare: Precise dosing and packaging of cough syrups, suspensions, liquid nutritional supplements, and topical medicinal oils.
• Chemical & Automotive: Handling of lubricants, adhesives, sealants, and other industrial-grade viscous fluids.
